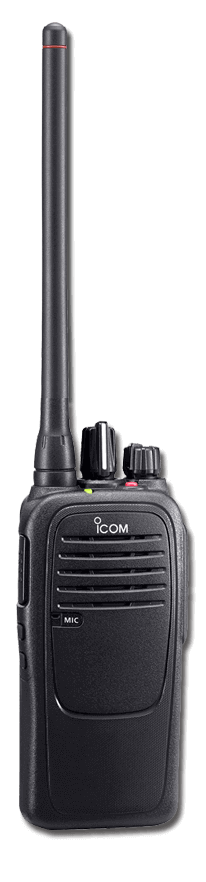

ICOM f1000

ICOM

F1000 / F2000

Description

The F1000/F2000 Series is a sleek portable radio that fits nicely in your hand-designed to be the go to entry to mid-level radio. Three model choices, basic – no display, simple – display with simple keypad, and full – display and fully DTMF keypad, include an array of features such as a built-in motion sensor, channel announcement function, and a rugged waterproof & dustproof chassis. The radio series is ideal to meet the needs of a wide range of businesses, such as those involved in the education, hospitality, and retail.

Frequency band:
F1000: VHF
F2000: UHF

Frequency range:
F1000: 136–174MHz
F2000: 400-470MHz, 450-512MHz

Power Output:
VHF: 5W; UHF: 4W

Standard battery chemistry type:
Li-Ion

Battery life (based on a 5-5-90 duty cycle):
Up to 14 hours

Number of Channels/Groups/Zones:
16 or 128 Channels

Channel spacing:
12.5

Dimensions H x W x D (with standard battery)
2.2×111.5×24.5mm; 2.06×4.39×0.96 in

Weight (with standard battery)
240g; 8.47oz

Keypad / Keys
F1000/F2000: None
F1000S/F2000S: Limited/Simple
F1000T/F2000T: 10 Ten-keypad

Display
F1000/F2000: No Display
F1000S/F1000T/F2000S/F2000T: Eight character alphanumeric display

Operating temperature
–30°C to +60°C; –22°F to +140°F

Mil spec
810-C, -D, -E, -F, -G

IP Standards
IP67

Request A Quote


Built-in Motion Sensor
With a built-in motion sensor, the F1000 Series can detect its position, state of motion and non-motion and can send an emergency signal. The motion function detects if the transceiver is moving or shaking, for example, during a chase. The lone worker and man down functions are programmable.

Built-in Signaling
The F1000 Series comes with all the popular signaling, including 2-Tone, 5-Tone, CTCSS and DTCS for group communication and selective calling. MDC features are also programmable, including:

  • PTT ID
  • Emergency (TX/RX)
  • Radio check (RX)
  • Stun/Revive (RX)
  • Up to 100 alias ID numbers or names (LCD types only)
  • Additional Features
  • Built-in voice scrambler
  • Channel announcement
  • 8 DTMF autodial memories
  • "Shift key" function increases number of programmable key assignments
  • Surveillance function
ICOM FASC25U

FASC25U

400-430MHz Antenna for LM portables

ICOM FASC25V

FASC25V

136-150MHz Antenna for LM portables

ICOM FASC26US

FASC26US

400-450MHz Stubby antenna for LM portables

ICOM FASC26VS

FASC26VS

136-144MHz Stubby antenna for LM portables

ICOM FASC27VS

FASC27VS

142-150MHz Stubby antenna for LM portables

ICOM FASC28V

FASC28V

142-162MHz Antenna for LM portables

ICOM FASC29V

FASC29V

160-174MHz Antenna for LM portables

No Image Available

FASC55V

146-174MHz Standard antenna for LM portables

ICOM FASC56VS

FASC56VS

150-160MHz Stubby antenna for LM portables

ICOM FASC57U

FASC57U

430-470MHz Standard antenna for LM radios (red ring)

ICOM FASC57VS

FASC57VS

160-174MHz Stubby antenna for LM portables

No Image Available

FASC61UC

380-520MHz Cut antenna for the specific frequency desired

No Image Available

FASC61VC

136-174MHz Cut antenna for the specific frequency desired

No Image Available

FASC62V

150-160MHz High gain antenna for LM portables (10")

No Image Available

FASC63V

155-165MHz High gain antenna for LM portables (9.5")

ICOM FASC72U

FASC72U

470-512MHz Antenna for LM portables

ICOM FASC73US

FASC73US

450-470MHz Stubby antenna for LM portable radios

ICOM BP279

BP279

Battery Li-ion 7.2V 1485mAh battery

ICOM BP280

BP280

Battery Li-ion 7.2V 2280mAh battery

ICOM MB133

MB133

Alligator-type belt clip

ICOM OPC515L

OPC515L

DC power cable for single-unit rapid chargers

ICOM OPC656

OPC656

DC power cable for gang charger

ICOM LCF1000S

LCF1000S

Leather carrying case
for F1000/2000/D non-display radios with a swivel

No Image Available

LCF1000SS

Leather carrying case
for F1000S/2000S radios with a swivel belt loop and cutout for the display

No Image Available

LCF1000TS

Leather case for F1000T/2000T radios with a full keypad cutout with a swivel loop

ICOM NCF1000C

NCF1000C

Nylon carrying case for F1000/2000/D non-display radios with a clip

ICOM NCF1000SC

NCF1000SC

Nylon carrying case for F1000S/2000S display radios with a clip and cutout

ICOM NCF1000TC

NCF1000TC

Nylon carrying case for F1000T/2000T radios with a clip and cutout for the display and keypad

No Image Available

AD130

Adapter cup that fits into the BC214 for the F1000/D series

No Image Available

BC123SA

AC adapter for rapid chargers
100-240V with US style plug

ICOM BC157S

BC157S

AC adapter for gang chargers
100-240V with US style plug

ICOM BC213

BC213

Rapid charger with a US plug for radios with the BP279/BP280 battery
(BC-123SA included)

No Image Available

BC213NAC

Rapid charger cup for radios with the BP279 battery
(BC-123S not included)

ICOM BC214

BC214

6-unit charger with US plug AC adapter and cups installed

ICOM CP23L

CP23L

12V cigarette lighter cable for use with rapid chargers

ICOM MB130

MB130

Vehicle charger bracket holds rapid charger and requires cigarette lighter cable

ICOM HS94

HS94

Earpiece headset
for VS/OPC2004/OPC2006/OPC1392

ICOM HS94LWP

HS94LWP

Earhook headset with boom microphone with screw down connector (2-pin) for hands-free operation.

ICOM HS95

HS95

Headset with boom microphone
use with VS/OPC2004/OPC2006/OPC1392

ICOM HS95LWP

HS95LWP

Behind-the-head type with boom microphone with 2-pin screw down connector

ICOM HS97

HS97

Earphone with throat mic headset
use with VS/OPC2004/OPC2006/OPC1392

No Image Available

VS4LA

PTT switch cable to communicate using the HS94/95/97

No Image Available

HM-HD7I7WP

Large waterproof speaker microphone with 3.5mm accessory jack
(right angle 2-pin screw down connector)

ICOM HM158LA

HM158LA

Compact speaker microphone with revolving clip and earphone jack
(right angle 2-pin screw down connector, stereo mic/mono speaker)

ICOM HM159LA

HM159LA

Large speaker microphone with earphone jack and metal alligator clip
(right angle 2-pin screw down connector, stereo mic/mono speaker)

No Image Available

SP-AT1

Single pin listen only w/QD acoustic tube
(9", 3.5mm L-shape)

ICOM HM128L

HM128L

Earphone/microphone with 2-pin right angle connector

No Image Available

HM153LA

Covert durable microphone with earphone combination
(right angle 2-pin screw down connector)

  • F1000 RC 136-174MHz 16 CH, no display, analog portable
  • F1000S 90 136-174MHz, 128 CH, LCD, 4-key analog portable
  • F1000T 94 136-174MHz, 128CH, LCD, full DTMF keypad analog portable
  • F2000L RC 400-470MHz 16 channel, no display
  • F2000S 90 400-470MHz, 128 CH, LCD, 4-key
  • F2000T 94 400-470MHz, 128 CH, LCD, full DTMF keypad
  • F2000H RC 450-512MHz analog handheld, 16 CH, no LCD
  • F2000S 76 450-512MHz, 128 CH, LCD, 4-key
  • F2000T 78 450-512MHz, 128 CH, LCD, full DTMF keypad
