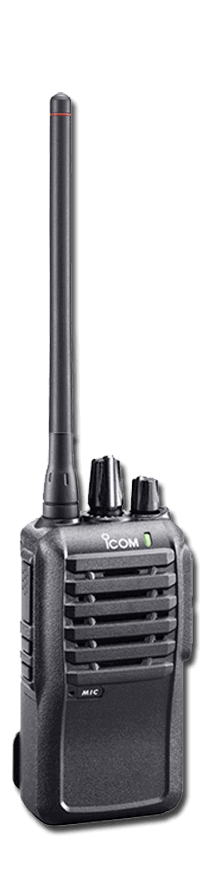

ICOM f3001

ICOM

F3001 / F4001

Description

The F3001/F4001 Series is an easy-to-use entry-level portable with no special training required. The few knobs and buttons are generously sized for easy operation. This simple interface makes it ideal for high turnover environments and shift work where the radio is constantly passed from person to person. The radio series is ideal to meet the needs of schools, retail, golf courses, community centers and others with similar basic radio needs.

Frequency band:
F3001: VHF
F4001: UHF

Frequency range:
F3001: 136–174MHz
F4001: 400-470MHz, 450-512MHz

Power Output:
Up to 5W

Standard battery chemistry type:
Li-Ion

Battery life (based on a 5-5-90 duty cycle):
20 hours

Number of Channels/Groups/Zones:
16 Channels

Channel spacing:
12.5 kHz, 15/30 kHz

Dimensions H x W x D (with standard battery)
2.28 x 4.38 x 1.41 in

Weight (with standard battery)
9.5 oz

Keypad / Keys
None

Display
None

Operating temperature
-30°C to +60°C; -22°F to +140°F

Mil spec
810-C, -D and -E

IP Standards
IP54

Request A Quote


Hands-Free Operation
The radio has the internal VOX capability for hands-free operation. Optional compatible headset with plug adapter cable OPC-2004 can be used with the radio. Also, the VOX gain and VOX delay time are adjustable.

Built-in Signaling
The F3001 Series comes with all the popular signaling, including 2-Tone, 5-Tone, CTCSS, DTCS and MDC1200 PTT ID & emergency. The radio’s 2-Tone and 5-Tone signaling gives you selective calling, quiet stand-by and other convenient functions with programming. The radio "stun" function disables a radio over the air and the "revive" function restores the stunned radio.

Additional Features

  • Priority scan
  • DTMF autodial
  • Low battery alert
  • Talk around function
  • Enhanced emergency
  • Surveillance function
  • 2-step power save
  • Time out timer
  • Lone worker function
  • 3-color LED
ICOM FASC25U

FASC25U

400-430MHz Antenna for LM portables

ICOM FASC25V

FASC25V

136-150MHz Antenna for LM portables

ICOM FASC26US

FASC26US

400-450MHz Stubby antenna for LM portables

ICOM FASC26VS

FASC26VS

136-144MHz Stubby antenna for LM portables

ICOM FASC27VS

FASC27VS

142-150MHz Stubby antenna for LM portables

ICOM FASC28V

FASC28V

142-162MHz Antenna for LM portables

ICOM FASC29V

FASC29V

160-174MHz Antenna for LM portables

No Image Available

FASC55V

146-174MHz Standard antenna for LM portables

ICOM FASC56VS

FASC56VS

150-160MHz Stubby antenna for LM portables

ICOM FASC57U

FASC57U

430-470MHz Standard antenna for LM radios (red ring)

ICOM FASC57VS

FASC57VS

160-174MHz Stubby antenna for LM portables

No Image Available

FASC61UC

380-520MHz Cut antenna for the specific frequency desired

No Image Available

FASC61VC

136-174MHz Cut antenna for the specific frequency desired

No Image Available

FASC62V

150-160MHz High gain antenna for LM portables (10")

No Image Available

FASC63V

155-165MHz High gain antenna for LM portables (9.5")

ICOM FASC72U

FASC72U

470-512MHz Antenna for LM portables

ICOM FASC73US

FASC73US

450-470MHz Stubby antenna for LM portable radios

No Image Available

LAIRD EXH 160 MXI

155-160MHz Antenna

No Image Available

LARSEN SPHL10160IC

151-163MHz Helical ¼ wave antenna center tuned to 157MHz

ICOM BP263

BP263

Battery case that holds 6 AA alkaline batteries

ICOM BP264

BP264

Battery Ni-MH 7.2V 1400mAh

ICOM BP265

BP265

Battery Li-ion 7.4V 1900mAh

ICOM MB124

MB124

Alligator-type belt clip

ICOM OPC515L

OPC515L

DC power cable for single-unit rapid chargers

ICOM OPC656

OPC656

DC power cable for gang charger

No Image Available

LCF3000 SWIVEL

Leather carrying case
for F3001/4001 & F3101D/4101D radios with a swivel

ICOM NCF3000 CLIP

NCF3000 CLIP

Nylon carrying case
for F3001/4001 & F3101D/4101D radios with a clip

ICOM AD120

AD120

Adapter cup that fits into the BC197 02/03 for the BP264 NiMH battery

ICOM AD121

AD121

Adapter cup that fits into the BC197 12/13 for the BP265 Li-ion battery

No Image Available

BC123SA

AC adapter for rapid chargers
100-240V with US style plug

ICOM BC147SA

BC147SA

AC adapter for trickle chargers
100-240V with a US style plug

ICOM BC157S

BC157S

AC adapter for gang chargers
100-240V with US style plug

ICOM BC192

BC192 12

110V trickle charger for the NiMH BP264
(not CEC compatible for AM radios)

ICOM BC193

BC193

Rapid charger for radios with BP265 Li-ion battery
100-240V with US style plug

ICOM BC197 02

BC197 02

6-unit charger for radios with the BP264 NiMH battery
(includes AC adapter and cups installed); 100-240V with US style plug

ICOM BC197 12

BC197 12

110-240V 6-unit charger for radios with the BP265 Li-Ion battery
(includes AC adapter with US plug and cups installed)

ICOM BC197 13

BC197 13

220V 6-unit charger for radios with the BP265 Li-Ion battery
(includes AC adapter and cups installed)

ICOM CP23L

CP23L

12V cigarette lighter cable for use with rapid chargers

ICOM MB130

MB130

Vehicle charger bracket holds rapid charger and requires cigarette lighter cable

ICOM HS94

HS94

Earpiece headset
for VS/OPC2004/OPC2006/OPC1392

ICOM HS95

HS95

Headset with boom microphone
use with VS/OPC2004/OPC2006/OPC1392

ICOM HS97

HS97

Earphone with throat mic headset
use with VS/OPC2004/OPC2006/OPC1392

ICOM OPC2004

OPC2004

Adapter plug to to use the HS94/95/97 for F3001/4001/3101D/4101D & V80 radios

OTTO V4EX2CS5

OTTO V4EX2CS5

Explorer lightweight headset with flexible earloop w/boom mic (2-pin right angle screw down connector)

No Image Available

HM-HD7I7WP

Large waterproof speaker microphone with 3.5mm accessory jack
(right angle 2-pin screw down connector)

ICOM HM158LA

HM158LA

Compact speaker microphone with revolving clip and earphone jack
(right angle 2-pin screw down connector, stereo mic/mono speaker)

ICOM HM159LA

HM159LA

Large speaker microphone with earphone jack and metal alligator clip>
(right angle 2-pin screw down connector, stereo mic/mono speaker)

No Image Available

IMPACT HD3-I3

Heavy duty speaker microhpone with 3.5mm accessory jack
(2-pin screw down connector)

OTTO V110282

OTTO V110282

Speaker microphone earpiece (2.5mm straight plug)

OTTO V110433

OTTO V110433

Speaker microphone earpiece (3.5mm right angle plug)

OTTO V2C2CS11

OTTO V2C2CS11

Legacy speaker microphone (2-pin screw down connector)

No Image Available

IAS BC-RHADPTR

Charger adapter 100-240V for use with the IAS OPC-RHUSB

No Image Available

IAS BC-RHCHG1

RedHawk microphone single-unit charger 100-240V

No Image Available

IAS BC-RHCHG12

RedHawk microphone 12-unit charger 100-240V

No Image Available

IAS BP-RHBATT1

RedHawk microphone 3.8V 1200mAh battery

No Image Available

IAS CP-RHLP

Cigarette lighter plug 12-24V requires 2 USB cables

No Image Available

IAS CS-RHSW

Utility software to upload stored tracks, optional PC programming, online demos.
One per customer needed.

No Image Available

IAS OPC-RHI2

RedHawk 2-pin cable connects GPS mic to radio

No Image Available

IAS OPC-RHUSB

USB cable to connect mic with PC or charger adapter.
One comes with each microphone.

No Image Available

IAS REDHAWK

Speaker microhpone with GPS receiver.
LCD display shows basic orientation of all members within a group. Battery & USB cable included.
Cable that hooks from microphone to radio is required.

ICOM HM128L

HM128L

Speaker microhpone with GPS receiver.
LCD display shows basic orientation of all members within a group. Battery & USB cable included.
Cable that hooks from microphone to radio is required.

ICOM HM128L

HM128L

Earphone/microphone with 2-pin right angle connector

No Image Available

HM153LA

Covert durable microphone with earphone combination
(right angle 2-pin screw down connector)

  • F3001 03 RC 136-174MHz radio with 1900mAh
  • F4001 03 RC 400-470MHz radio with 1900mAh
  • F4001 43 RC 450-512MHz radio with 1900mAh
