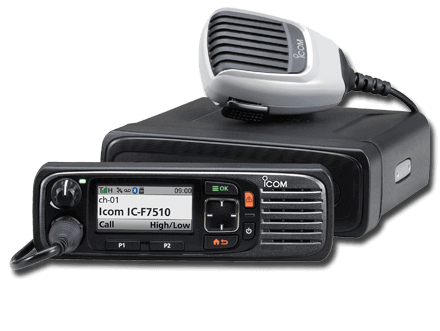

ICOM f7510

ICOM

F7510 / F7520

Description

The F7500 series P25 mobiles support the ever-advancing P25 standard. The needs for both public service and public safety organizations are also addressed with the new P25 series. Icom’s third generation of this product not only captures the essentials, but offers dozens of new features and functions all in one new small form factor size. Public service and public safety organizations will like the built-in SD Card, GPS, USB interface, Bluetooth, and color display. Activation options for trunking, OTAR, OTAP and more, allow for expanded or upgraded services without burdening the user with unnecessary features. Icom is the choice when you want to take your P25 communications to the next level.

Frequency band:
VHF, UHF

Frequency range:
F7510: 136–174 MHz
F7520: 380–470, 450–512, 450–520 MHz

Power Output:
VHF: 50W; UHF: 45W

Number of Channels/Groups/Zones:
1024 Channels / 128 Zones

Channel spacing:
25*/12.5 kHz (Analog), 12.5 kHz (Digital) *25 kHz bandwidth NLA for FCC Part 90 licensees for USA versions

Dimensions
174 × 55 × 150 mm; 6.9 × 2.2 × 5.9 in

Weight
1500 g; 3.3 lb

Display
High-resolution color LCD

Operating temperature
–30 °C to +60 °C; –22 °F to +140 °F

Mil spec
810-C, -D, -E, -F, -G

IP Standards
IP55

Request A Quote


Intuitive User Interface
The high-resolution color LCD enhances the visibility both in nature and indoor lighting. Clearly labeled function and menu items make it easy to understand icons and characters. The night mode LCD setting is an alternative for use in night time or low lighting conditions. The glass is scratch resistant to protect from cracks and scratches.

P25 Features

  • P25 Phase 1 conventional
  • P25 Phase 1 trunking and Phase 2 trunking optional licenses
  • P25 voting scan (P25 conventional mode) optional license
  • Enhanced dual-rate Vocoder, AMBE+2™
  • Analog/digital mixed operation
  • Over-the-Air Programming (OTAP) optional license
  • Individual and group call
  • Unit ID and talkgroup display on receive
  • Status update and status query
  • Short data message (up to 100 characters)
  • GPS position and transparent data transmission optional license
  • Call alert
  • Phone number list
  • Call log

Multiple Controller Configurations
The F7500 series mobiles allows the user to configure the radio three ways to suit almost any application or installation requirement. The intercom function is available between controllers and/or COMMANDMIC.

The new COMMANDMIC is an identical physical layout and user interface as the F7010. By installing in into a vehicle it allows a secondary remote control of the F7500.

Additional Features

  • FIPS 140 Level 1 AES with Over-the-air Rekeying (OTAR) optional license and board
  • Front panel programming optional license
  • Hands-free communication with built-in Bluetooth®
  • Tile designed keypad increases durability and visibility
  • Programmable ringer peep
  • USB port to connect to a PC
  • Built-in 2-tone, 5-tone, CTCSS, DTCS & MDC1200 in analog
  • Programmable D-SUB connector for external PTT, channel honr, PA/RX speaker, ignition switch and dimmer control
  • TX/RX active noise canceler
  • TX/RX audio equalizer
ICOM UX241

UX241

GPS antenna

No Image Available

IAOPC1003

USB to micro-USB 3ft cable

ICOM OPC1132

OPC1132

DC power cable (9.8ft) with 2-pin T connector.

No Image Available

OPC347

DC power cable (23ft)

ICOM VS3

VS3

Bluetooth pendant earpiece microphone w/PTT

No Image Available

HM220

Heavy duty microphone (IP54) for the F5400 series

No Image Available

HM220T

Heavy duty microphone with DTMF keypad (IP54) for the F5400 series

No Image Available

HM221

Microphone (IP55) for the F5400 series

No Image Available

HM221T

Microphone with DTMF keypad (IP55) for the F5400 series

ICOM SM29

SM29

Desktop microphone for F5400 series

No Image Available

Control Station Assemble

Install mobile into power supply and cabinet to make control station

No Image Available

IAPS12

Power supply with cover for control station (120VAC; 12A)

ICOM HM218

HM218

Secondary remote control microphone, COMMANDMIC, for the F5400D/F6400D.
Requires RMK5 + OPC2373 or OPC2374.

ICOM OPC2364

OPC2364

1.9m/6.2ft Separation cable for RMK5/RMK7

No Image Available

OPC2365

3m/9.8ft Separation cable for RMK5/RMK7

No Image Available

OPC2366

5m/16.4ft Separation cable for RMK5/RMK7

No Image Available

OPC2367

8m/26.2ft Separation cable for RMK5/RMK7

ICOM OPC2373

OPC2373

1.9m/6.2ft Separation cable for HM218

ICOM OPC2374

OPC2374

8m/26.2ft Separation cable for HM218

ICOM RMK5

RMK5

Bracket & face plate for remote mounting for the F5400D/F6400D.
Separation cable not included.

ICOM RMK7

RMK7

Dual head and separation kit for the F5400D/F6400D.
Separation cables & microphone not included.

ICOM SP30

SP30

Large external speaker 20W

ICOM SP35

SP35

External speaker 5W with 3.5mm speaker jack and 2m cable

  • F7510 136-174MHz P25 conventional mobile with color display
  • F7520 11 380-470MHz P25 conventional mobile with color display
  • F7520 21 450-512MHz P25 conventional mobile with color display
