ICOM

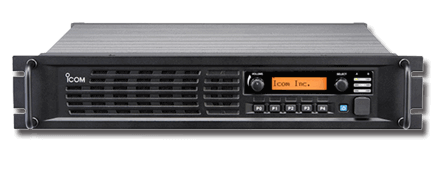

50W Full Duty Cycle Digital Repeater
50W 100% Duty Cycle Operation
Employing a high performance power amplifier, together with the solid heatsink built into the chassis, the FR5200H series provides a reliable 100% duty cycle operation at 50W output.
IDAS, Analog FM and Mixed Mode
The FR5200H series is compatible with both analog FM mode and IDAS conventional and NXDN™ Type-D trunking mode. Program digital and/or analog FM modes per channel. The mixed mode operation allows you to receive both analog FM and IDAS conventional modes and to transmit either mode depending on the received signal.
32 Channel Capacity and 5 Programmable Buttons
The 12-digit dot-matrix display, 5 programmable buttons, 32 memory channels and internal speaker allow you to use the repeater as a simple base station or to check repeater activity. LEDs on the front panel show channel conditions.
D-SUB 25-Pin Accessory Connector
The FR5200H series has a programmable D-SUB 25-pin accessory connector for connecting external remote control devices. Also, modulation/demodulation signals can be input/output from the D-SUB connector.
Multiple CTCSS, DTCS Tone and RAN Code Cecode
The FR5200H series decodes multiple CTCSS and DTCS as well as digital RAN (Radio Access Number) codes on a per channel basis (up to 16 tones/codes) and downlinks the received signal with a specified tone/ code. This function is useful for sharing a channel with multiple groups.
